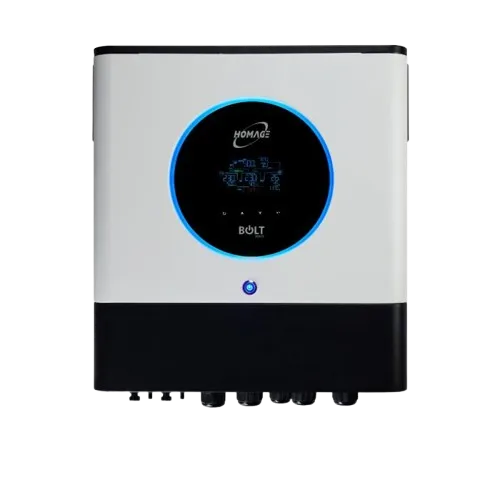

Homage HBS-8017SCC Bolt Series Inverter 8000KW Solar Supported Inverter
8000W Hybrid Inverter (48V DC / 230V AC)
A powerful, battery-independent inverter with pure sine wave output, 8000W capacity, and a 1.0 power factor. Features enhanced MPPT solar charging (up to 11,000W, 150A), lithium battery support, and smart load management. Includes dual AC input with auto-switching, built-in WiFi for mobile monitoring, and supports parallel operation (up to 6 units). Grid-tie ready, with full connectivity (USB, RS232/485, CAN), replaceable fan design, and RGB status display.
₨ 298,000 ₨ 378,000
Inverter Specifications
-
Power Output:
-
8000 VA / 8000 W
-
DC Input: 48V
-
AC Output: 230V
-
Power Factor: 1.0 (100% real power)
-
-
Waveform:
-
Pure Sine Wave
-
-
Design:
-
Operates independently of battery
-
Grid and battery hybrid support
-
-
Solar Charging:
-
Enhanced MPPT (Maximum Power Point Tracking)
-
Solar Input Power: Up to 11,000 W
-
Max Solar Charge Current: 150A
-
Max PV Input Current: 27A x 2 (Max 40A total)
-
-
Battery Management:
-
Compatible with Lithium-ion batteries
-
Battery Equalization Function (improves battery life and performance)
-
Communication Port reserved for BMS integration
-
-
Connectivity & Monitoring:
-
Built-in WiFi for remote monitoring via Android/iOS app
-
Communication Interfaces: USB, RS232, RS485, CAN, Dry Contact
-
USB OTG (On-the-Go) functionality supported
-
-
Smart Features:
-
Dual AC input – supports two independent AC sources with auto-switching
-
Dual output for smart load prioritization
-
AC/Overload Timer – allows for custom time-based usage and source prioritization
-
Supports feeding excess power into the grid
-
Parallel operation: connect up to 6 units
-
-
Maintenance & Protection:
-
Replaceable fan design for easier servicing
-
Built-in anti-dust kit
-
RGB status indicator light
-
