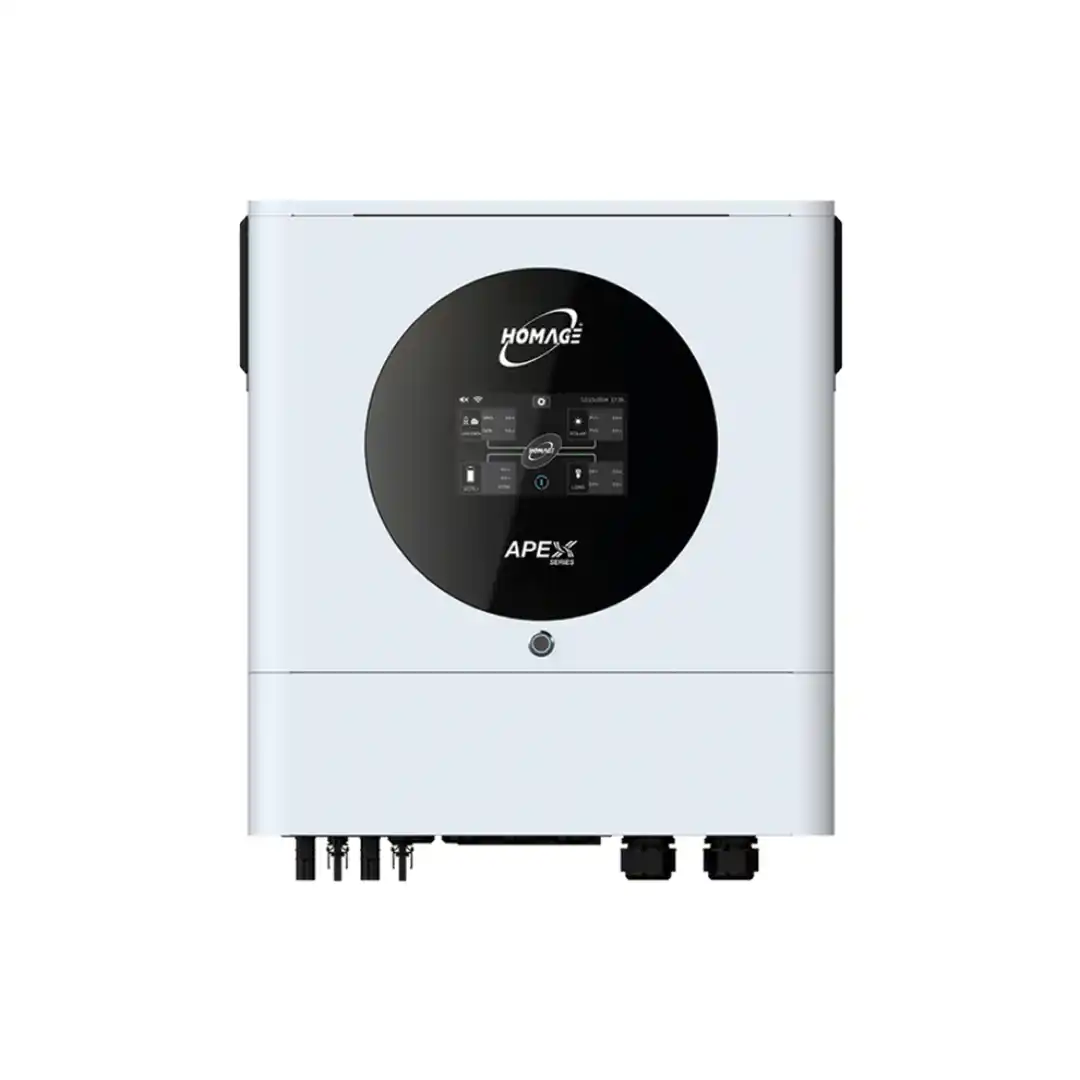

Homage HAS-8518SCC Apex Hybrid Solar Inverter

Device Overview:

• Power rating: 8500VA / 8500W at 48V DC input and 230V AC output.

• Waveform: Pure sine wave output — clean power suitable for sensitive electronics.

• Power Factor Range: 0.9 leading to 0.9 lagging, allowing flexible load compatibility.

• Battery Independent Design: Can operate without a battery connected, useful for certain setups.

• Solar Charge Controller: High capacity MPPT controller supporting up to 13,000W solar input with a max charge current of 150A.

• Battery Compatibility: Supports lithium-ion and includes equalization to optimize battery life.

• Communication: Multiple interfaces (USB, RS232, RS485, CAN, Dry Contact) for integration and BMS connection.

• User Interface: 7-inch touchscreen LCD with Wi-Fi for mobile app monitoring and OTA firmware updates.

• Energy Management: Tracks PV, grid, and battery data for generation and consumption.

• AC Power Sources: Can connect two independent AC sources with automatic switching.

• Load Management: Dual output for managing loads smartly.

• Grid Feed-in: Supports feeding power back into the grid.

• Parallel Operation: Up to 6 units can work together for larger power needs.

• MPPT Trackers: Two built-in MPPT trackers, each with max 30A input (can go up to 40A max).

• Self-consumption Guarantee: External CT sensor monitors power flow to maximize onsite use.

• Timers & Prioritization: Configurable for AC/PV output usage.

• Dust Protection: Built-in anti-dust kit for durability.
